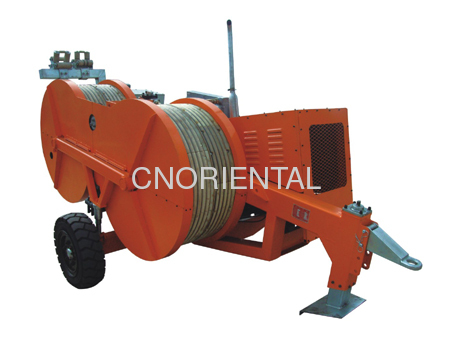

Product name:500kv 400kv 380kv 330kv line stringing 2 bundled conductor tensioner

Specification of 500kv 400kv 380kv 330kv line stringing 2 bundled conductor tensioner
♦  Model:SA-YZ2×35
♦  Order number :07181
♦  Technical parameter
     Maximum Tension(kN): 2×35 or 1×70
     Continuous Tension(kN):2×30 or 1×60
     Maximum speed (km/h):5
     Bullwheel bottom of groove diameter(mm) :Φ1200
     Number of grooves:2×5
     Maximum pullback (kN):2×30 or 1×60
     Maximum speedback (km/h):2×1.2
     Maximum suitable conductor diameter (mm): Φ32
     Engine power /speed (kW/rpm):38/2500
     Dimensions (mm): 4100 × 2100×2600
     Weight(kg):4000
♦  Application: to string various conductors and earthwire .
♦  feature :
     1. Bullwheel with resistant MC nylon lining segments.
     2. Infinitely variable tension control and constant tension conductor stringing .
     3.  Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety .
     4.  attached two sets of hydraulic power input interface to connect the hydraulic conductor reel stand .
♦  Main component
     1.Engine :Chinese famous brand water–cooled engine .
     2.main pump and main motor : Rexroth (BOSCH )
     3.Reducer : RR(Italian) or Rexroth
     4.hydraulic valve : Rexroth (BOSCH )
     5.radiator :AKG
     6.hydraulic meter :WIKA
     7. option:Deutz air–cooled engine .

We offers:

overhead stringing puller tensioner

Stringing pulley blocks

Come along clamps

3T 5T diesel gasoline powered winch

underground cable sender, cable pusher, cable feeder, cable puller and rollers

hydraulic drum jack , reel stand, reel elevator

Anti twist steel wire rope

Duct rod, duct rodder

Gin pole

About NINGBO ORIENTAL MACHINERY OF POWER CO.,LTD

We supply various series of  equipments and tools for overhead and underground power line transmission installation totally over 2000 products since 1988. Till now we have established  business relationship with nearly 5000 power and telecom utilities in China as  well as 40 countries world-wide.

1988: Ningbo Oriental Machinery of Power Co., Ltd established

1998: Passed factory management: ISO 9001 International Quality Management System.

2000: Approved by Nation Grid as "Sole Manufacturer of Electric Power Construction Equipment"

2004: Invested 6.5 billion RMB to build a new industy zone covering 105,000 m2.

2006: Gained "Manufacture license of special equipment people's republic of China" by General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China"for producing puller ,tensioner and gin pole etc.

2007: confirmed by "China Electricity Council", awarded the first "Key Manufactory of Power Construction Equipment" in China.

2007~2011: Awarded "China qualified famous brand", "Ningbo famous brand", " National Technology Innovation quality management advanced company", "Ningbo top 100 manufacture", "AAA credit enterprise" , " Nation High technology enterprise"

2011:Still now, we have over 400 staff, including one expert enjoying special allowance from State Council, 15 senior engineers, 23 engineers, 34 assistant engineers and 19 senior technicians.

Testing facilities

We invest large number of funds into developing new products and enhancing quality of products every year. After moved to the new industry zone, we have invested over 200 million yuan accumulatively, introducing lots of advanced production equipment and facilities. Now we have:

218 sets of various production equipment

a 40-meter high testing tower (load:40t) and 4000m2 of outdoor testing field which is suitable for the simulated test of 300KN hydraulic pullers, 4*45KN hydraulic tensioners, electrical crossing structures, emergency restoration towers and gin poles;

1000KN horizontal tensile tester and 600KN multifunctional vertical tester which is fit for the tensile test of construction tools and machines of transmission lines up to 1000KV.

35MPa hydraulic testing table ensures the reliable hydraulic system and the more smooth development of hydraulically driven equipment, like pullers and tensioners
